Unity Performance Optimization: A Rendering Diagnosis Workflow

A repeatable way to find what is making a frame expensive, choose the right rendering experiment, and check whether it helped.

Alexandr RiceFollow on X Updated October 4, 20268 min readUnity 6

Screenshots: Unity 6000.0.62f1 · URP 17.0.4 · macOS Metal. A small demonstration scene illustrates the controls and rendering mechanisms. Editor timings are not device benchmarks. Click any screenshot to enlarge it.

Step 1: capture a repeatable baseline on the target device

Unity performance optimization starts with a slow frame you can reproduce. Choose a representative camera route, scene state and device. A busy combat encounter, a view through several rooms and a large outdoor vista can have different bottlenecks, even inside the same game. Keep each as a separate test case.

Write down the Unity version, render pipeline and package version, graphics API, device, resolution, Quality Level, render scale, frame cap and VSync state. Include dynamic resolution, upscaling and camera stacking when used. Warm up the scene before collecting samples so that loading and shader compilation do not accidentally become the experiment.

Open File > Build Profiles, select the intended platform and enable Development Build and Autoconnect Profiler for a diagnostic capture. Build and run on that device, then select the Player in the Profiler's target selector. Start without Deep Profiling; its additional instrumentation can change the workload. Unity explains the connection workflow in profiling on a target device.

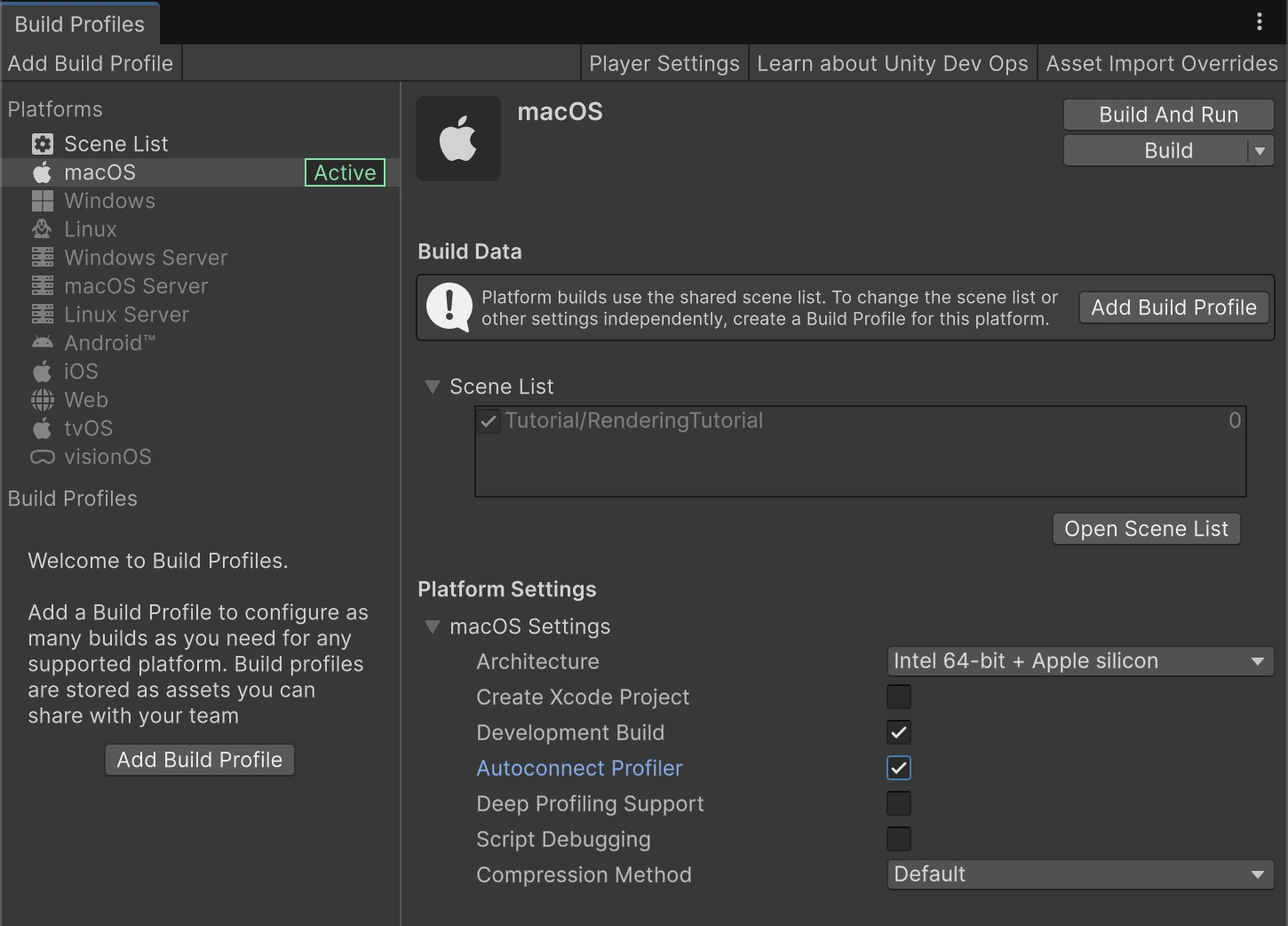

Build Profiles with Development Build and Autoconnect Profiler enabled. This screenshot shows configuration only; the tutorial captures below are from Editor Play Mode, not a built Player.

Use frame time in milliseconds as the comparison unit. A 60 FPS target gives roughly 16.67 ms per frame; 30 FPS gives 33.33 ms. CPU and GPU workloads overlap, so do not add their durations together as if they were sequential. Record both where available, plus recurring spikes and the conditions that trigger them.

Step 2: identify the limiting work before choosing an optimization

Record several seconds, pause collection and inspect an ordinary slow frame as well as a spike. In CPU Usage, examine the main thread and rendering-related work. Expand the relevant samples in Hierarchy or switch to Timeline to inspect how threads overlap. If scripts, physics or loading dominate, a rendering change may not move the frame time.

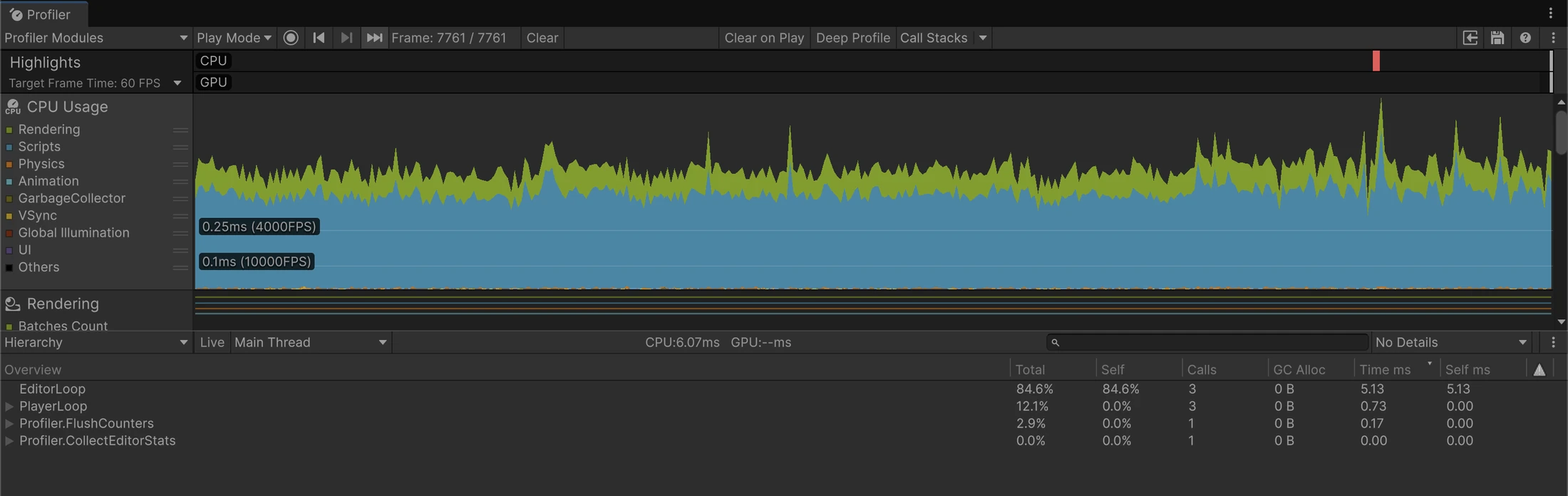

A recorded CPU Usage frame with Hierarchy details. The target is Play Mode in the Editor; EditorLoop and profiler overhead are visible, and GPU time is unavailable.

A wait marker needs context. The main thread may wait for the render thread, the render thread may wait for GPU work, or presentation may be limited by synchronization and a frame cap. Inspect adjacent threads and supported GPU timing before interpreting waiting as a specific bottleneck. See Unity's CPU Usage Profiler reference.

When the GPU Usage module is supported, use it to investigate expensive rendering stages. On macOS Metal, Unity 6.0's GPU Usage module is not supported; use a suitable platform profiler such as Xcode GPU tools. An empty GPU track means the measurement is unavailable. It does not mean the frame has no GPU cost. Check the GPU Profiler support table for your backend.

Observed patternUseful first hypothesisEvidence to collect
High CPU rendering costSubmission or state preparation is expensive.Batch breaks, repeated mesh/material groups, active shader variants.
GPU time responds to lower resolutionPixel processing, bandwidth or screen-sized passes may matter.Coverage, transparency, shader features and full-screen passes.
Dense distant geometryThe visible geometry workload may be unnecessarily high.Active LODs, submitted triangles, shadow and depth work.
Hidden rooms still contributeVisibility or pass-specific culling needs investigation.Camera events, baked occlusion settings and shadow events.
Only occasional spikesA transient operation may dominate.Frame sequence, loading, allocations and shader warm-up conditions.

These are hypotheses, not automatic diagnoses. For example, a resolution test affects several GPU costs at once. It can narrow the search without identifying one guilty shader.

Step 3: inspect how Unity builds the frame

Open Window > Analysis > Frame Debugger, choose the relevant target and enable the debugger. Expand camera and rendering-pass groups, then select events to inspect their shaders, resources and output. Look for repeated rendering, unexpected cameras, depth or color copies, shadow maps, transparent layers and full-screen effects.

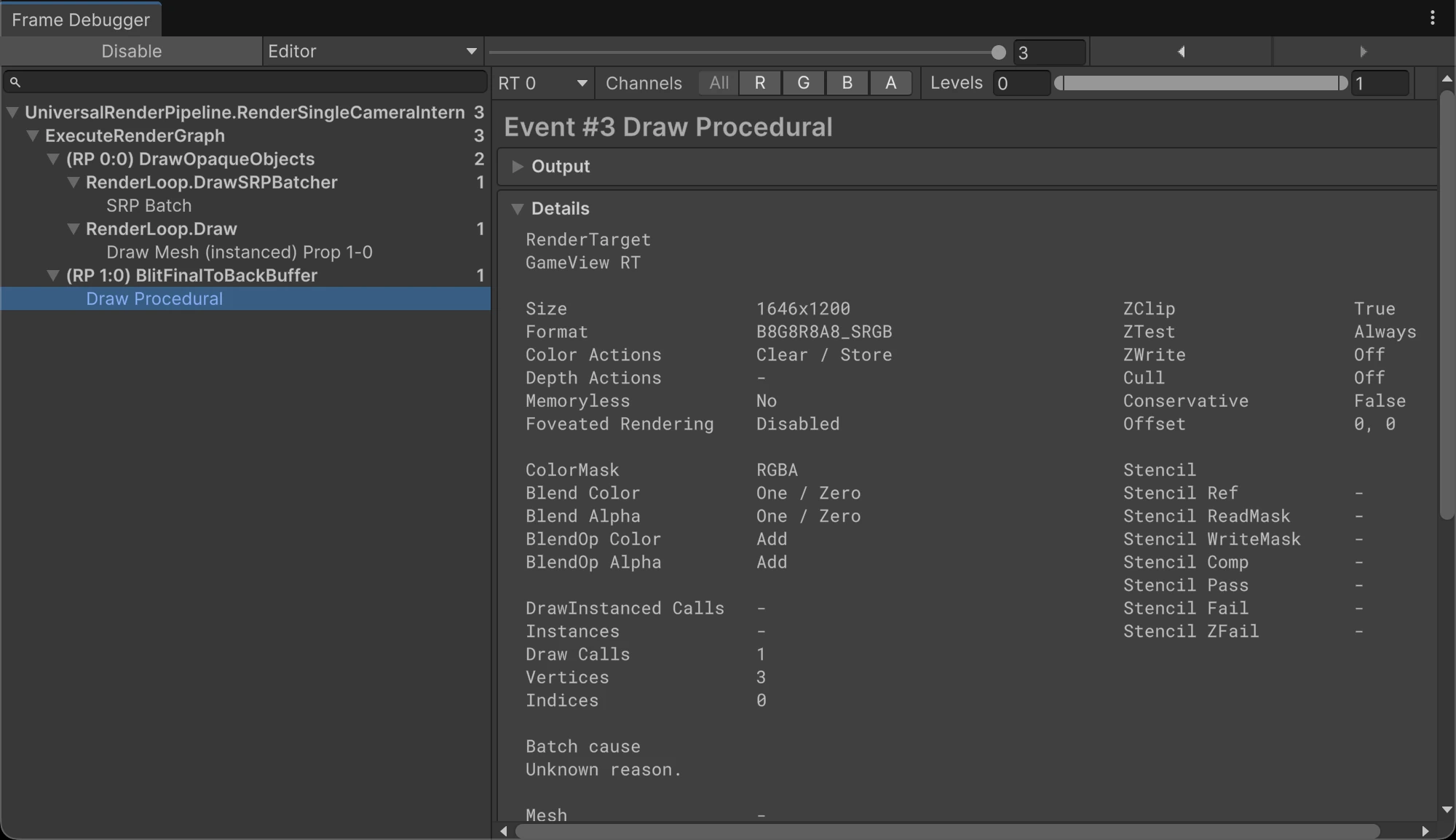

Frame Debugger events from the demonstration scene before the occlusion bake. Opaque geometry, an instanced draw and the final blit appear as distinct parts of the frame.

Do not treat the event-tree length as a draw-call count. A grouped SRP Batch can contain many draws. Equally, one object can contribute to multiple passes or cameras. Use the event details to understand what the tree represents. Unity's Frame Debugger is a rendering inspection tool; use a timing profiler to establish duration.

Disable the debugger before collecting performance samples. The paused inspection state is useful for explaining the frame, but it is not the baseline timing run.

Step 4: inspect geometry, LODs and visibility

Separate three questions: how detailed is the object, how often is it submitted, and does the camera need it? A mesh asset's triangle count answers only the first. Rendering it in shadow, depth and color passes changes the submitted workload without changing the asset.

The demonstration rock has three LOD renderers with 576, 144 and 36 triangles. The LODGroup also displays a warning because the captured Quality Level uses LOD Bias 2.

Inspect several expensive-looking candidates rather than lowering detail everywhere. Check that distant objects actually select reduced representations, that materials and submeshes remain sensible, and that transitions preserve silhouettes. Use the LOD setup and validation guide for the full workflow.

For obstructed views, compare the camera's frustum with Unity's baked occlusion visualization. A scene-space visibility estimate is not proof that a draw was excluded. Check the actual camera and pass events, including shadow paths. Follow the occlusion culling guide before adjusting bake parameters.

For repeated props, investigate whether the CPU is paying for avoidable submissions. That is a different experiment from simplifying every mesh. See GPU instancing and SRP Batcher compatibility.

Step 5: investigate shaders, screen coverage and texture resources

Start with the shader and pass actually used by a suspicious event. Identify its material settings, active keywords, textures and render state. A material can enable expensive features that are almost invisible in the final image. A shader can also be cheap per pixel but cover most of the screen or run behind several transparent layers.

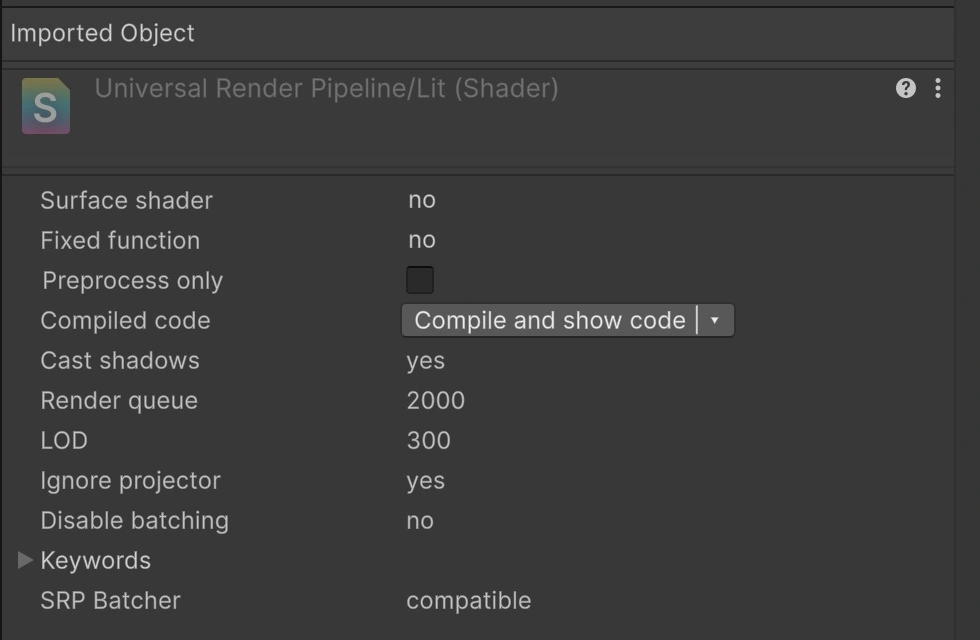

Unity's imported URP Lit shader Inspector exposes keywords, compiled-code access and SRP Batcher compatibility. The shader's LOD field is separate from a scene object's LODGroup.

Read shader source or generated Shader Graph code to form a hypothesis, then test it. Source length, graph node count and the number of possible variants are not GPU durations. The active compiled variant, hardware, coverage, texture access and pass count determine the actual workload. Avoid concluding that the largest source file is the slowest shader.

For a controlled material experiment, keep the camera, resolution and geometry fixed. Change one feature on a temporary comparison material, or compare against a deliberately simpler shader with matching coverage. Record the visual difference as well as timing. Removing transparency, normal mapping and additional lights simultaneously would make the result difficult to explain.

The demonstration URP asset shows Render Scale 1, MSAA disabled and GPU Resident Drawer disabled. These settings define capture conditions; changing them would change the workload being compared.

Inspect texture dimensions, compression, mipmaps and sampling patterns separately. File size, imported asset size, resident memory and sampling bandwidth describe different costs. Replacing a texture with a smaller one can affect quality and bandwidth without fixing submission overhead. For transparency and full-screen effects, test representative coverage and overlapping layers, not just the material in isolation.

Step 6: compare one change and keep the evidence

Return to the same target-device route and collect comparable samples after the change. Keep the baseline and experimental conditions identical except for the intended variable. Repeat the run enough to understand ordinary variation; a single faster frame is weak evidence.

Rendering Profiler details from Editor Play Mode after the occlusion bake. Draw Calls, Batches, SetPass Calls and instancing statistics are separate counters; this is not a paired before/after benchmark.

Use workload counters to check the mechanism. Lower triangles can confirm that reduced geometry was submitted. An instanced event can confirm the selected path. Lower CPU rendering time can support a submission optimization even when the draw-call count stays similar. The Rendering Profiler describes the available counters.

A useful comparison record

Save the test case, build identifier, device and backend, camera route, quality settings, warm-up procedure, sample duration, CPU/GPU timing availability, relevant workload counters, visual observations and the single changed variable. Keep incompatible captures separate.

Recheck the normal release configuration after diagnostic profiling. Accept the change when the intended workload improves consistently, image quality is acceptable, and the memory or CPU trade-offs fit the budget. If the result is inconclusive, preserve that conclusion and choose the next hypothesis.

Choose the focused guide for your next experiment

Frequently asked questions

How do I start optimizing a Unity game?

Capture a repeatable scene on the target device, record frame time and conditions, identify the limiting CPU or GPU work, and test one change. Rendering counters help explain a frame but do not replace timing.

How many draw calls are acceptable in Unity?

There is no universal limit. The useful budget depends on the device, graphics API, shader and pass work, visibility, and frame-time target. Measure the workload you actually ship.

Can the Frame Debugger measure GPU time?

The Frame Debugger explains rendering events, resources and state. Use the Unity GPU Profiler where supported, or a platform GPU profiler, to investigate GPU duration.

Why is GPU time unavailable in the Unity Profiler on macOS Metal?

Unity 6.0's GPU Usage Profiler module does not support Metal on macOS. Use supported platform tools such as Xcode GPU profiling. Missing GPU samples are unavailable data, not zero GPU cost.

Does a simpler shader always improve performance?

No. A simpler shader may have little effect when another workload limits the frame, or when it shades few pixels. Test its active pass and features at representative coverage on the target device.

Sources and version notes

Official Unity 6.0 documentation, checked October 4, 2026. Match the documentation version to your project.
