Repeated meshes and materials
Unity GPU Instancing: Setup, Requirements and Common Problems
Learn when repeated objects can share an instanced draw, what can prevent it, and how to verify the rendering path Unity actually chose.
Screenshots: Unity 6000.0.62f1 · URP 17.0.4 · macOS Metal. A small demonstration scene illustrates the controls and rendering mechanisms. Editor timings are not device benchmarks. Click any screenshot to enlarge it.
Start with the requirements and the rendering path
Unity GPU instancing is useful when a scene draws many copies of compatible geometry. Unity can submit instances together instead of preparing a separate ordinary draw for each copy. The GPU still transforms and shades those instances, so instancing does not remove their triangle, coverage or shader cost.
For automatic MeshRenderer instancing, matching objects need the same mesh and material, a shader that supports instancing, and compatible rendering state. Unity's automatic workflow does not support SkinnedMeshRenderer. Read the GPU instancing requirements for the pipeline and renderer restrictions.
URP and HDRP add a crucial distinction: compatible GameObjects normally use SRP Batcher ahead of automatic GPU instancing. Checking the material box therefore does not establish which path Unity used. In Unity 6 URP, GPU Resident Drawer is another rendering option with its own requirements. Do not treat these as interchangeable names for one switch.
What this demonstration proves
The screenshots use 50 dynamic cubes sharing one mesh and one custom instancing material. GPU Resident Drawer is disabled, while SRP Batcher remains enabled for compatible content. Frame Debugger confirms an instanced event for the cubes. The tiny meshes make the mechanism easy to see; the capture does not prove a performance advantage.
Step 1: use one shared mesh and material

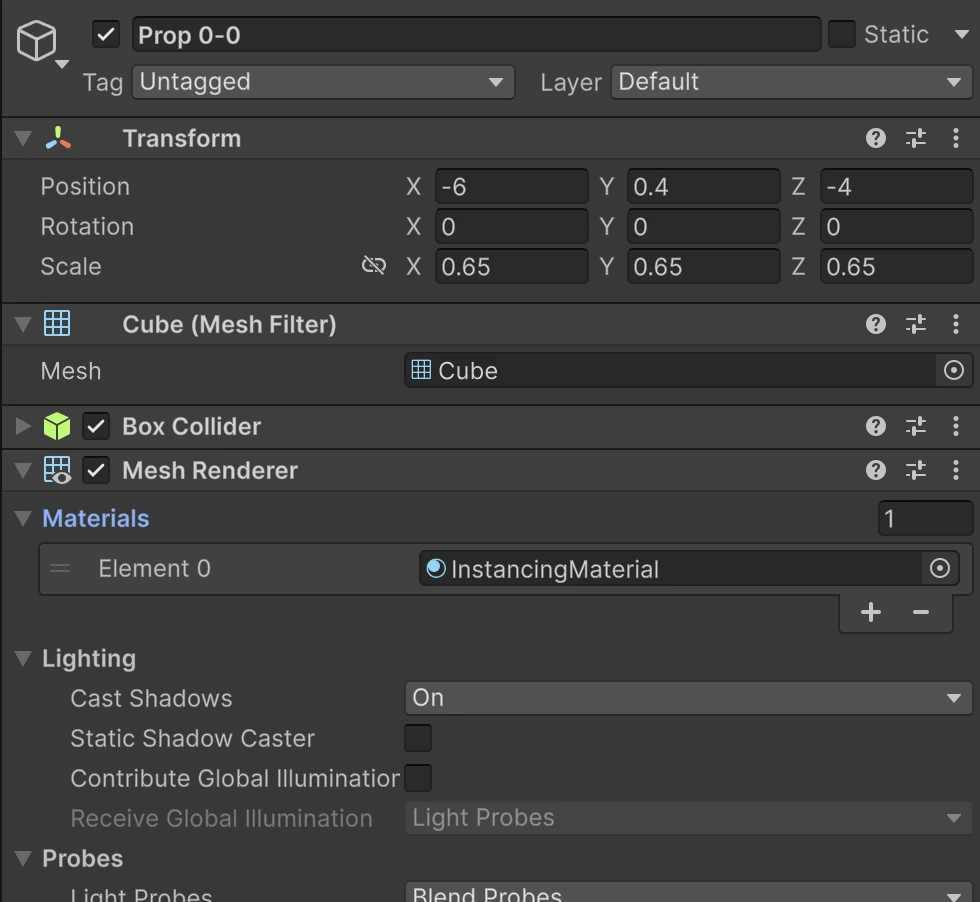

Pick a small group of repeated props, such as identical crates, rocks or building details. Inspect their Mesh Filter and Mesh Renderer > Materials. Confirm they reference the same mesh asset and the same material asset, rather than visually identical copies with different references.
Duplicate a configured object for the experiment. Keep transforms different so that you can recognize multiple visible instances, but leave the material reference shared. First test ordinary opaque objects; transparent sorting and additional rendering features introduce more variables.
Review scripts that access renderer.material. That property can instantiate a renderer-specific material and split a group that previously shared one asset. Unity describes the behavior in Renderer.material. Do not replace every access with shared-material mutation indiscriminately: modifying a shared asset changes all of its users. Choose the ownership and variation strategy intentionally.
Step 2: enable supported material and shader instancing

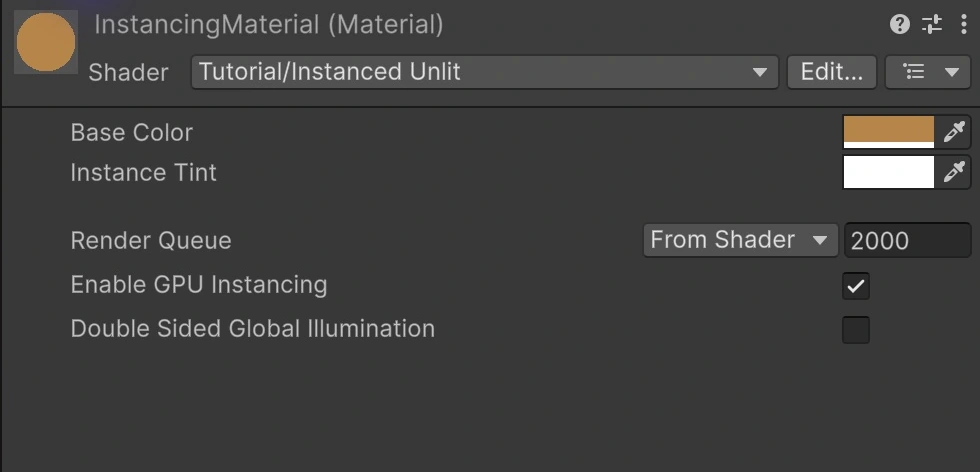

Select the shared material and enable Enable GPU Instancing when the shader exposes that option. Standard Inspector layouts may place it under Advanced Options. If the control is absent, check the shader and pipeline rather than assuming that every shader supports the same workflow.
A hand-written shader must compile an instancing variant and correctly handle instance IDs and any per-instance properties. Merely declaring a material property does not make it per-instance. Shader Graph and built-in shader behavior depend on the pipeline and version; consult Unity's instancing setup instructions.
For per-object variation, distinguish an instanced shader property from an ordinary material property. MaterialPropertyBlock can supply variation without allocating a new material, but it excludes a renderer from SRP Batcher compatibility. Non-instanced property changes can also prevent the intended instancing. It is a rendering trade-off, not a universal material optimization. See the MaterialPropertyBlock reference.
Keep the experiment narrow. Disabling SRP Batcher on a pipeline asset affects all renderers using that asset, including unrelated content. Check the SRP Batcher guide and establish a baseline before considering that broader comparison.
Step 3: confirm an actual instanced draw

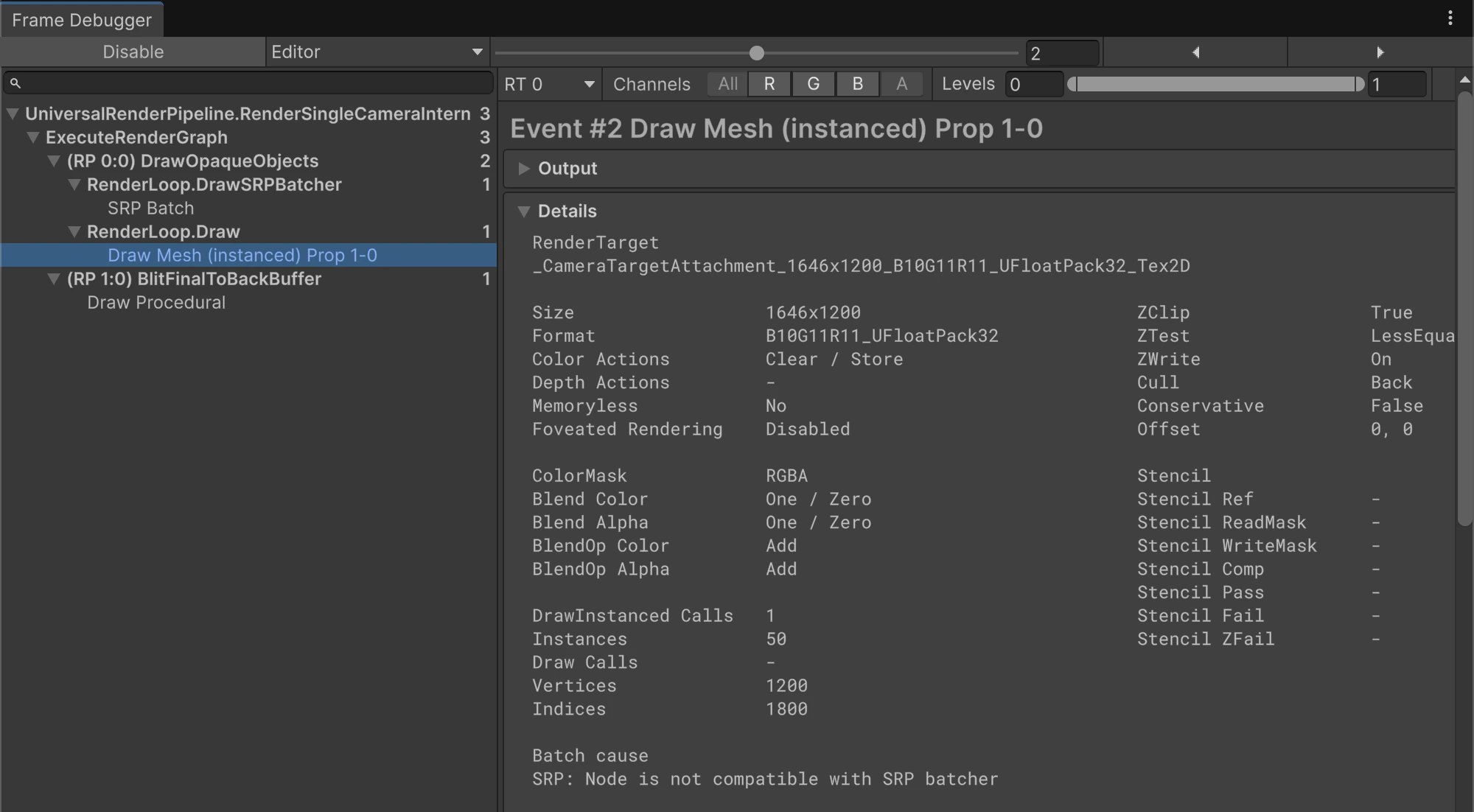

Open Window > Analysis > Frame Debugger and enable it for the intended camera or Player. Expand the relevant opaque events and select the repeated props' draw. Look for an instanced event and inspect its instance count, mesh, material and shader pass.
This screenshot verifies the rendering mechanism for the selected event. It does not say that every object in the scene is instanced or that instancing improved frame time. Other cameras, shadow passes or material slots can produce additional events that need separate inspection.
If the event is an SRP Batch instead, inspect its details before treating the material checkbox as broken. Unity may have selected the compatible SRP path. If draws remain separate, compare mesh and material references, actual pass state, lightmap usage, static batching and runtime property changes. Unity's event information reference explains the displayed fields.
Step 4: measure the representative workload

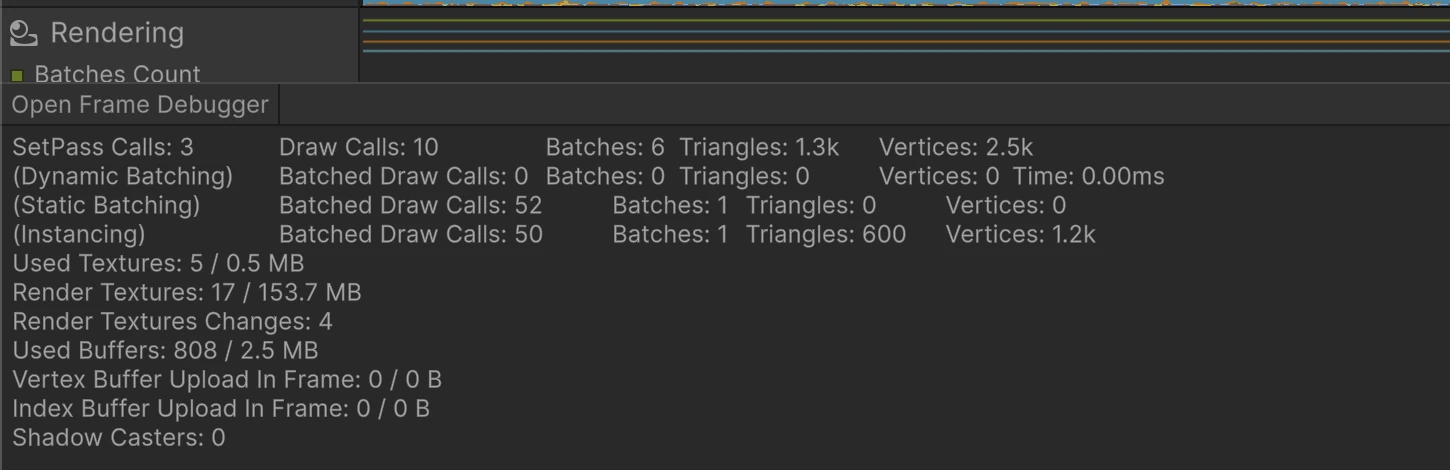

Disable Frame Debugger, run the same target-device camera route and collect comparable timing samples. Inspect CPU submission cost and GPU duration where supported, alongside the rendering counters. Keep mesh complexity, coverage, materials, camera state and quality settings fixed.
A smaller submission count can be useful when CPU rendering overhead limits the frame. If the GPU is dominated by transparent layers, texture access or expensive fragment work, grouping submissions may not address the dominant cost. More instances still mean more work to execute.
Test with the actual production mesh and representative instance counts. Very small meshes may not benefit enough to justify instancing overhead on a particular GPU. Unity discusses that limitation in GPU instancing troubleshooting; do not convert a rule of thumb into a universal threshold.
For code-driven rendering, public APIs such as Graphics.RenderMeshInstanced provide a separate workflow with their own batching and culling responsibilities. Choose that deliberately when needed; it is not required to understand or verify ordinary MeshRenderer instancing.
Why GPU instancing might not appear
| Symptom | Likely check | Next action |
|---|---|---|
| Checkbox checked, SRP Batch event | SRP Batcher compatibility and path priority. | Measure the current path before forcing a different one. |
| Identical-looking props remain separate | Mesh/material identity and runtime material instances. | Inspect the references of a small matching group. |
| Variation splits the draw | Instanced versus ordinary shader properties. | Review the shader declarations and property-block contents. |
| Animated mesh never instances | SkinnedMeshRenderer restriction. | Use a rendering approach designed for animated geometry. |
| Instancing appears, timing is similar | The limiting workload and representative mesh size. | Investigate geometry or pixel cost instead of submission alone. |
Continue with draw calls and batching to compare the available methods, or return to the rendering diagnosis workflow to choose the next experiment.
Frequently asked questions
What is GPU instancing in Unity?
GPU instancing draws repeated instances of compatible geometry together, supplying per-instance data such as transforms. It can reduce submission overhead, but it still performs geometry and pixel work for the instances.
Why does Enable GPU Instancing not work in URP?
The checkbox requires a compatible shader and renderer workload. SRP Batcher-compatible GameObjects normally use the SRP Batcher path instead of automatic GPU instancing. Inspect the actual events before changing pipeline settings.
Do GPU-instanced objects need the same material?
For Unity's automatic MeshRenderer instancing workflow, matching instances need the same mesh and material. Per-instance variation must use properties supported by the instancing shader rather than separate material copies.
Does GPU instancing work with SkinnedMeshRenderer?
Unity's automatic GPU instancing workflow does not support SkinnedMeshRenderer. An animated crowd needs a rendering approach designed for that workload; the material checkbox alone is insufficient.
Is GPU instancing always faster than SRP Batcher?
No. They optimize different aspects of submission. Compare representative Player captures on the target device and keep the rendering path that improves the limiting workload without unacceptable visual or memory changes.
Sources and version notes
Official Unity 6.0 documentation, checked October 4, 2026. Match the documentation version to your project.
